- Compact rackable 1U chassis, 12" (306mm) depth
- Supports Mini-ITX motherboards and serverboards
- Provides 1 x 3.5" HDD and slim ODD space
- Advanced thermal solution with 3 x 40mm PWM fans
- Thick 1.2mm SGCC steel
- Power supply options from 250W to 500W

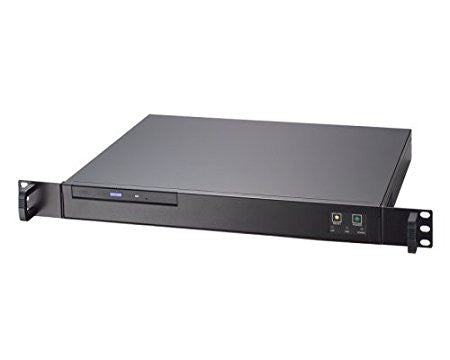

The Chenbro RM12800 is a 1U rackmount short depth chassis of exceptional quality. Produced from 1.2mm thick hot dip galvanised (SGCC) steel, the Chenbro RM12800 1U rackmount chassis is built to last. This 1U rackmount chassis supports mini-ITX boards with two 40x28mm PWM fans possitioned to provide airflow over passively cooled Mini ITX board such as Supermicro MBD-X11SSV-M4F-O. The front panel features power ON/OFF and system reset switches along side LEDs for Power status, HDD activity and LAN activity.

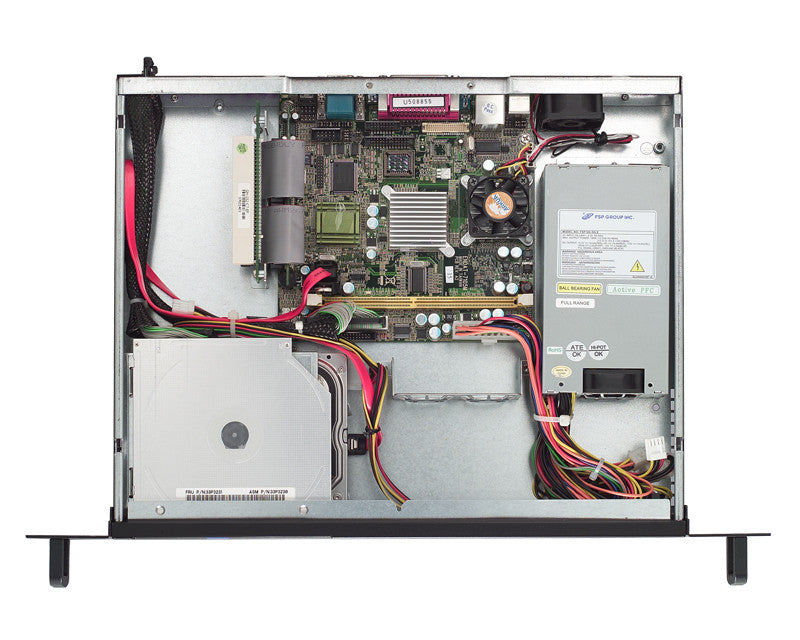

Internally the Chenbro RM12800 1U rackmount chassis has a single 3.5" HDD drive, with an adapter kit this can accomdate 2 x 2.5" HDD or SSD for striped or mirrord RAID, RAID 0 or 1.
This 1U rackmount chassis for mini-ITX also features an expansion slot for low profile cards, supports are provided for flexible cable riser cards.
| Model Name | RM12800 |
| Mainboard form factor | Mini-ITX (6.7"x6.7") |
| Dimensions (WxDxH) | 370 x 306 x 43.5mm (14.6" x 12" x 1.7") |
| PSU | Supports Flex ATX 1U |
| Cooling Fans | 40x40x28mm ADDA Dual ball bearing 4 wire PWM fans with upto 21CFM, 18kRPM and 56.7dBA. 2 fans located in the middle, 1 fan at the rear |
| Rear I/O slot | 1 x Low Profile |
| Metal Thickness | 1.2mm |
| Net weight, (chassis only) | 2.8kg |
| Rear I/O window | standard |
