- 2U Rackmount chassis, 457.2mm depth
- Supports motherboards and serverboards up to ATX size
- Provides 4 internal and 2 external drive bays
- Includes rear 80mm PWM system fan
- Thick 1mm SGCC steel
- PS/2 power supply support
- 7 slot Low profile rear card support

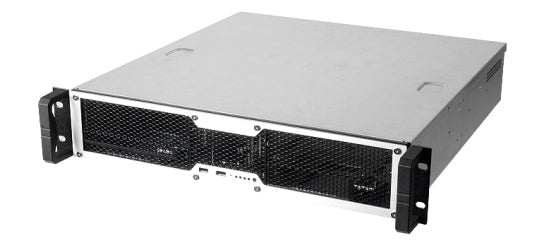

The Chenbro RM24100, a 2U 19" rackmount short depth feature-advanced industrial server Chassis.
This 2U 19" rackmount chassis supports system boards upto ATX size and includes a single 80x32mm rear PWM fan with an option to add 2 further 40mm system fans at the rear
Internally the Chenbro RM24100 2U rackmount chassis includes cushions for 3.5" and 2.5" HDD holders to miniize HDD vibration.
| Model Name | RM24100 |
| Mainboard form factor | Mini-ITX, Micro ATX or ATX |
| Dimensions (WxDxH) | 430 x 457.2 x 88.1mm (W x D x H) |
| PSU | Supports PS/2 80mm fan type SS-400ES2/SS-500ES2/SS600ES2 / SSP-400JS/SSP-500JS/SSP-600JS |
| Cooling Fans |
Rear: 1 x 80x32mm PWM Rear: 2 x 40mm optional |
| Rear I/O slot | 7 slot Low Profile |
| Metal Thickness | 1mm |
| Net weight, (chassis only) | 6.93kg |
| Rear I/O window | standard |
